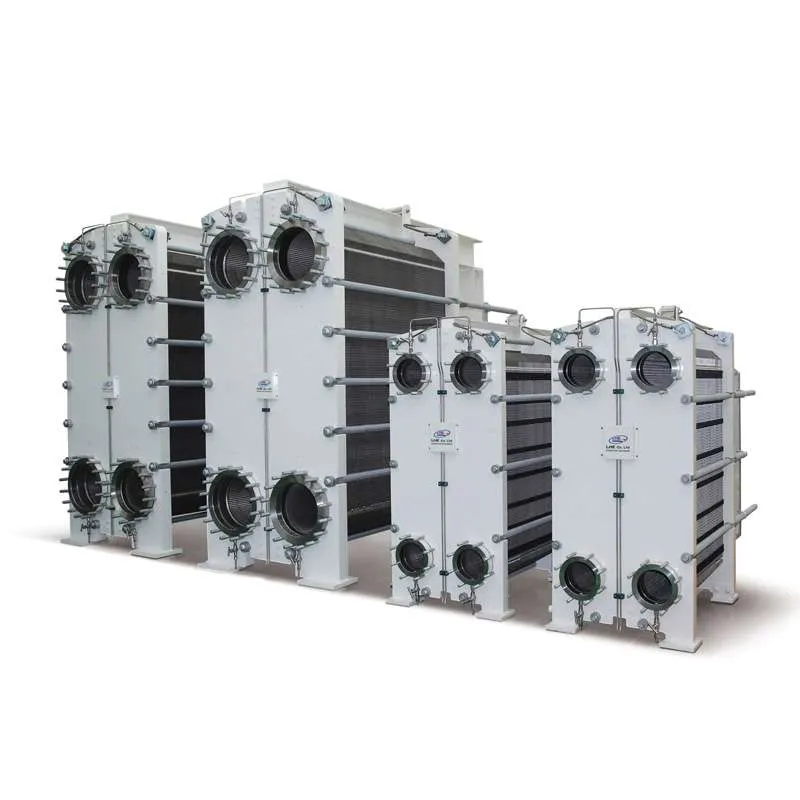

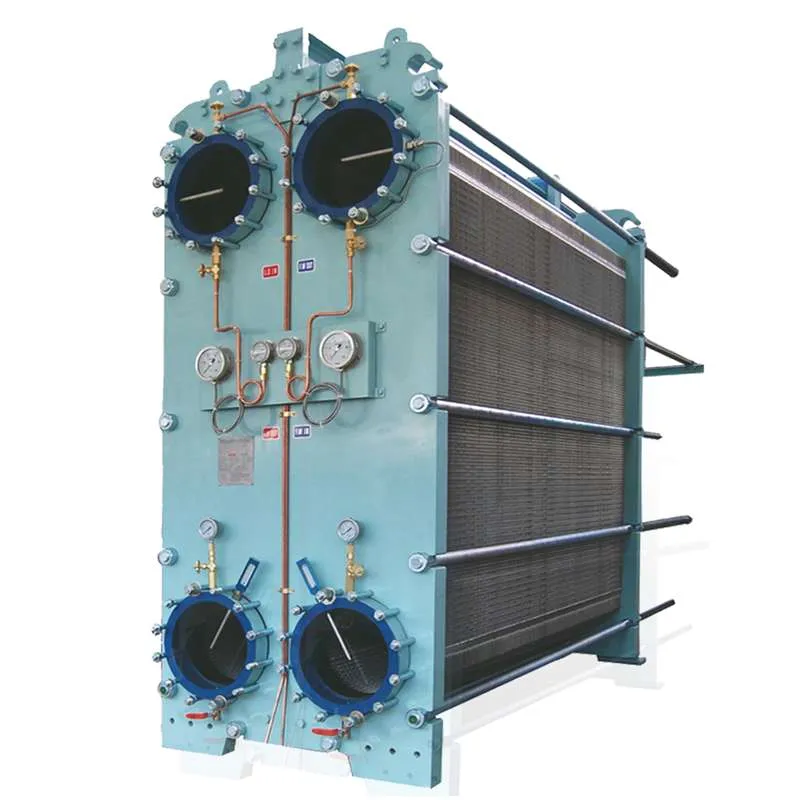

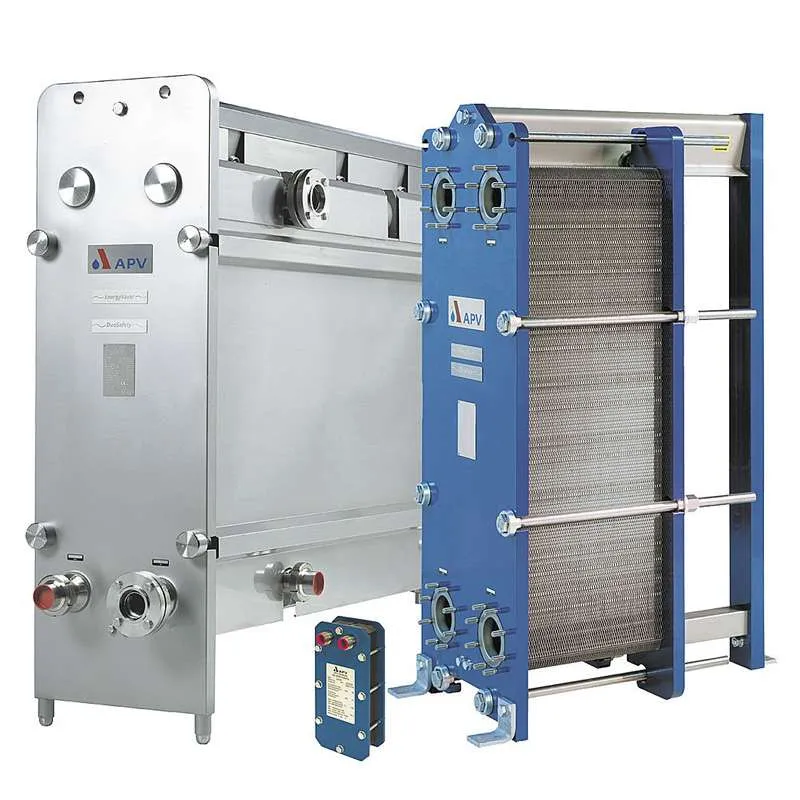

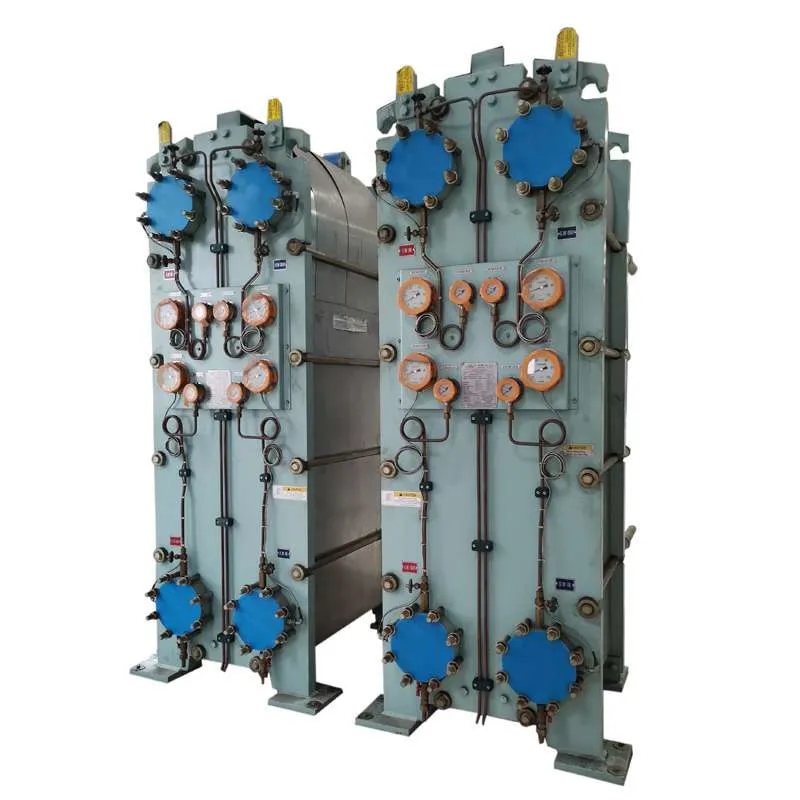

Plate heat exchanger
❮
❯
In order to meet customer needs, XR Marine stock a lot of plate heat exchanger (plate coolers). The plate heat exchanger (plate coolers) with genuine parts quality and certification are worth of your reliable!
| No. | Suitable for TYPE | L* W*H | Medium | Material | Plate hole Dia. | Area of Plate | Max.flow | QTY |
| (1) | HT064H-1P-7 M.E L.O COLLER/ BOILER M.G.O COOLER | 530*325*1225mm | L.O. | SS | 45 mm | 1.2 m² | 2 m³/hr | 2sets |
| (2) | GCP-026P PLATE HEAT EXCHANGER | 800*455*1300mm | WATER | SS | 100 mm | 8.3 m² | 1set | |
| (3) | HT102M-1P-43 M/E J.W COOLER | WATER | SS | 10.7 m² | 103.0 m³/hr | 2sets | ||
| (4) | HT102ML-1P-45 M/E J.W COOLER | WATER | SS | 11.2 m² | 105.0 m³/hr | 1set | ||
| (5) | SH102H-1P-55 M.E L.O COLLER | 695*615*1710mm | M.G.O. | SS | 90 mm | 30.2 m² | 50 m³/hr | 2sets |
| (6) | HT231L-1P-81 G.E.L.T.F.W COOLER | 880*885*1600mm | WATER | SS | 215 mm | 43.5 m² | 455 m³/hr | 1set |
| (7) | HT151H-1P-223 NO.1 C.F.W COOLER | WATER | TITANIUM | 121.6 m² | 340.0 m³/hr | 2sets | ||
| (8) | HT152HM-1P-159 NO.1 CENTRAL F.W COOLER | WATER | TITANIUM | 133.5 m² | 275.0 m³/hr | 4sets | ||
| (9) | HT151H-1P-245 MAIN L.O COOLER | 2000*725*1800mm | L.O. | SS | 150 mm | 133.7 m² | 160 m³/hr | 1set |
| (10) | HT151HM-1P-297 M.E.L.O COOLER | 2160*720*1670mm | L.O. | SS | 130 mm | 162.3 m² | 190 m³/hr | 2sets |
| (11) | HT152H-1P-231 MAIN L.O. COOLER | L.O. | SS | 194.7 m² | 156.0 m³/hr | 2sets | ||
| (12) | HT233HM-1P-387 M/E L.O COOLER | 2570*885*2340mm | L.O. | SS | 210 mm | 392.7 m² | 360 m³/hr | 4sets |
| (13) | SH331HM-1P-363 L.T.F.W COOLER | 2610*1115*2590mm | WATER | TITANIUM | 290 mm | 527.1 m² | 900 m³/hr | 2sets |
